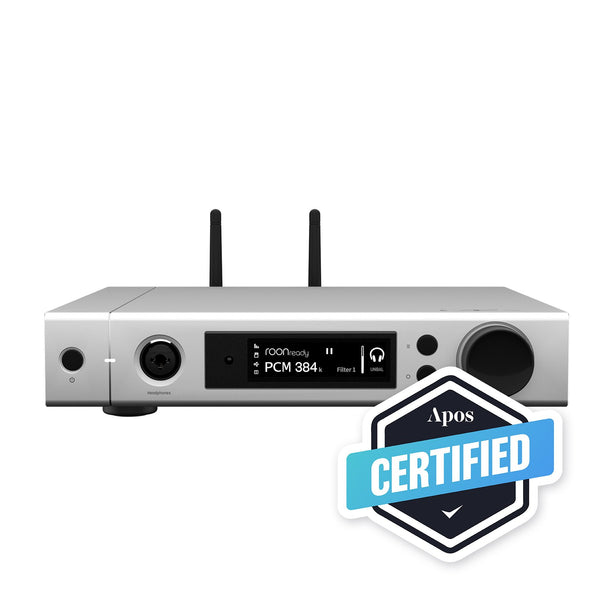

The Matrix element M DAC/Amp provides a desktop two-channel stereo simplification solution for mid-range active speaker and headphone users. It uses the ES9028PRO advanced D/A solution and SiTime low phase noise clock to maximize its potential performance. The element M is a powerful audio playback system based on Freescale quad-core ARM computing platform and supports all popular audio formats. It functions as a high quality headphone amp that has a bipolar input stage that effectively rejects common-mode distortion. The output stage for the headphone amp is set in a high quiescent current state, giving you an intriguing mellow sound performance.
The element M can be controlled using the included RM3 infrared remote control or through the app. The double-shell structure of the element M changes the fixed resonant frequency and reduces the negative impact of resonance on sound quality. Finally, it has an Android App with iOS App in the works, and allows you to push music through AirPlay or DLNA.
Specs:
- Coaxial & Optical Input
- PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- DSD 2.8MHz (DoP)
- IIS LVDS
- PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
- DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
- DSD 2.8MHz, 5.6 MHz, 11.2 MHz, 22.4MHz, 45MHz (Native)
- USB Audio Input
- PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
- DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
- DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)
- XLR Input
- SNR: > -128 dB
- THD+N: <0.00022%@1k, <0.00025%@20Hz-20kHz
- Frequency Response: 20Hz-20kHz ±0.05 -3dB@120kHz
- Crosstalk : > -145dB
- XLR Amplitude: 4.5VRMS@0dB
- RCA Input
- SNR: > -125dB
- THD+N: <0.00028%@1k, <0.00045%@20Hz-20kHz
- Frequency Response: 20Hz-20kHz ±0.05 -3dB@120kHz
- Channel Crosstalk : >-128db
- RCA Amplitude: 2.0VRMS@0dB
- Headphone Output
- Single Ended
- SNR: >-111dB @2VRMS
- THD+N: <0.0006%@ 1VRMS
- Frequency Response: 20Hz-20kHz ±0.05 -3dB@47kHz
- Output Impedance: <0.6Ω
- Output Power: 1320mw@33Ω, 248mw@300Ω, 124mw@600Ω, 1%THD
- Gain: +12dB
- Network
- LAN: 10BASE-T/100BASE-TX
- WLAN: 2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac standard
- MA.PALYER
- Format Supported: MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF
- PCM Sampling rate: PCM 16/24/32Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
- DSD Sampling rate: DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz
- USB Storage Device
- Element X can use devices that conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices or memory cards
- Power
- Power Voltage: 230V position is fit for AC220V-240V 50/60Hz 115V position is fit for AC100V-120V 50/60Hz
- Stand-by Power Consumption: ＜1W
- Sleep Power Consumption: ＜4W
- Max Power Consumption: <25W
- Size: 275 x 281 x 60 mm (l x w x h)
- Weight: 3.7 kg
- Accessories
- RM3 remote control
- Power cable
- USB cable
- WiFi antenna x2
