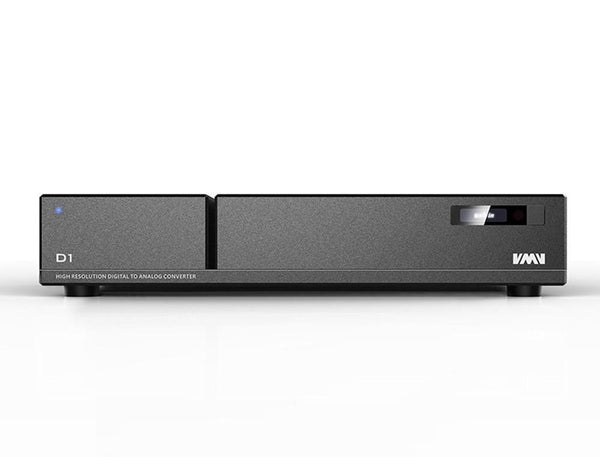

SMSL VMV D1 DAC (Digital-to-Analog Converter)

The SMSL VMV D1 DAC comes with two pieces of the ES9038PRO DAC chip and a split power supply. It has eight built-in channels that have been paralleled for a better signal-to-noise ratio, a dynamic range of 131 dB, and a built in total of ten tone modes. The D1 also uses direct and NORATEL UK custom ultra-low noise toroidal transformers. For inputs it has USB, optical, coaxial, EBU, and for outputs it has RCA and XLR.

Specs:

• Input interface: USB, optical, coaxial, EBU
• Output interface: RCA, XLR
• Dynamic range: 131 dB
• SNR: 122 dB
• THD+N: 0.0002%
• USB transmission: Asynchronous transmission
• USB: Windows7/8/8.1/10, macOS 10.6 Linux or later
• Support OTG: Yes
• USB bit: 16 bit, 24 bit, 32 bit, 1 bit
• USB: DSD 2.8224, 5.6448, 11.2896, 22.5792 MHz
• USB: PCM 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768 kHz
• Optical/coaxial sampling rate: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• XL output level: 4.6 Vrms
• Power consumption: 10W
• Dimensions: 10.4 x 8.5 x 2 in (265 x 215 x 50 mm)
• Weight: 11 lbs (5 kg)
