Dang it.
This product has been discontinued. Luckily, we have a great alternative in the TOPPING D90LE DAC.
Multi-channel HIFI

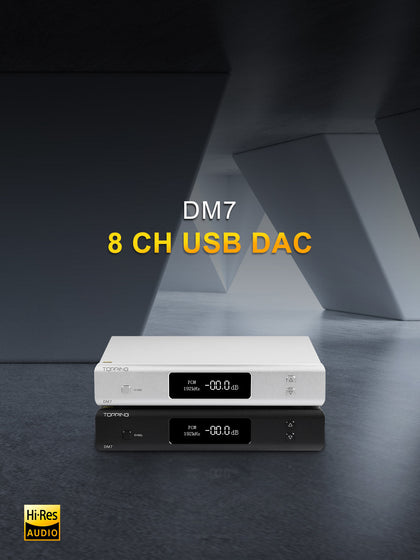

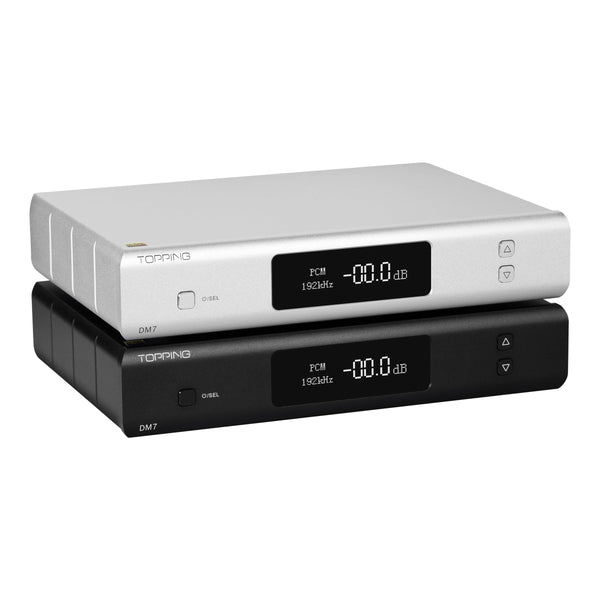

The TOPPING DM7 combines flagship DAC technology and eight fully-balanced TRS outputs for a multi-channel HI FI experience.
Flagship DAC chip
Utilizing ESS’ flagship ES9038PRO DAC chip, the TOPPING DM7 decodes 32-bit files with 130dB of dynamic range and <0.00009% THD+N.
Easy to use
In Windows 10 and 11, the DM7 can be used in stereo without a driver or used in 8 channels with a driver. On a Mac, the DM7 can be used without a driver and freely configured with up to eight channels.
Perfectly pairs with the TOPPING LA90
The DM7's fully-balanced TRS outputs can be connected to powered monitors or the TOPPING LA90 Class AB power amplifier.
Backwards compatibility
The DM7 is backwards compatible with 6-channel, 4-channel, and 2-channel systems, covering 7.1, 6.1, 5.1, and 2.0 applications.
12V trigger in/out
Turn the DM7 on and off with other devices synchronously using the 12V trigger interface. Simply connect the 12V trigger interface with a compatible device; when you turn one on, the other turns on, and vice versa.
Product highlights
- 8 channel DAC
- ESS ES9038PRO Flagship DAC chip
- Fully-balanced TRS output
- 8ch 32-bit/192kHz, DSD128 Native
- THD 0.00009%
- 130dB dynamic range
- 12V trigger in/out
Specs
- USB specs
- PCM 32bit/192kHz 8 channel
- DSD64 8 channel
- DSD128 8 channel
- THD+N: <0.00009%
- THD @90kBW: <0.0002%
- SNR: 130dB
- Dynamic range: 130dB
- Frequency response: 20Hz - 40kHz
- Output level
- 4.0Vrms @0dBFS
- 5.0Vrms @0dBFS
- Noise: <1.5 uVrms
- Crosstalk: -143dB
- Channel balance: <0.3dB
- Output impedance: 100Ω
What’s included
- TOPPING DM7
- Remote control
- USB cable
- AC cable
- User warranty
- Warranty card
