Fully balanced, super efficient

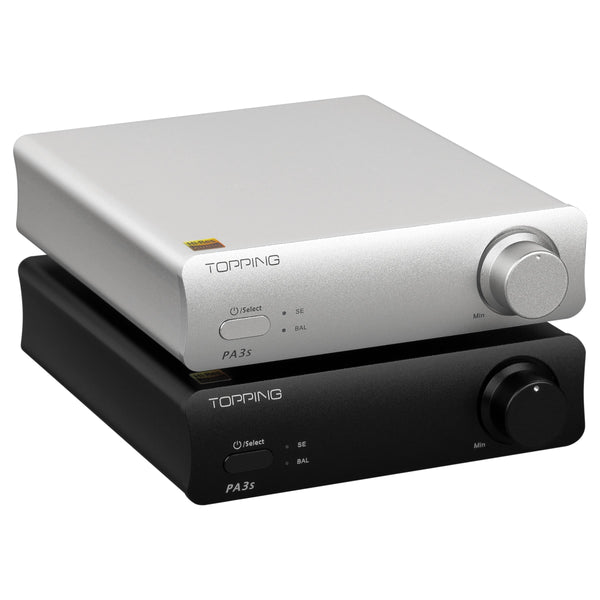

The TOPPING PA3s is a fully balanced Class D power amplifier--an affordable and efficient option for powering your bookshelf or floor stand speakers. As a balanced amplifier, it powers each incoming channel with a separate amplifier chip. As a Class D amp, it uses far less power than Class A amps, making it super efficient.
Fully balanced Class D amplification
In the PA3s, each channel is separately amplified by its own Class D power amplifier chip. By separating the channels, the PA3s achieves greatly reduced crosstalk and better audio performance. Each chip has its own heat dissipation, which extends the lifespan of the amp.
80W x2 of power
Drive any bookshelf or floor stand speakers with 80Wx2 of power at 4Ω load.
Balanced + single-ended inputs
Connect multiple sources via TRS balanced and single-ended RCA inputs. The balanced input option eliminates potential ground loop problems, providing pristine audio without hum. Either input is selectable using the front panel button, and the PA3s will remember the last input selected when you turn it on.
Product highlights
- 80W x2 @4Ω, THD+N <10%
- 65W x2 @4Ω, THD+N <1%
- Two MA12070 Class D power amplifier chips
- Fully balanced amplifier
- <0.004% THD+N
- RCA and TRS inputs
Specs
- Single-ended input
- THD+N @1kHz (A-wt)
- <0.005% @4Ω 5W
- <0.004% @8Ω 5W
- THD @20-10kHz (20kBW)
- <0.008% @4Ω 5W
- <0.007% @8Ω 5W
- SNR: 107dB
- DNR: 107dB
- Frequency response: 20Hz-40kHz (±0.1dB)
- Output level
- 46Vpp@4Ω
- 48Vpp@8Ω
- Noise (A-wt): <70uVrms
- Channel crosstalk @1kHz: -96dB
- Input sensitivity: 0.92Vrms
- Gain: 25.2dB
- Channel balance: 0.5dB
- Balance input
- THD+N @1kHz (A-wt)
- <0.0045% @4Ω 5W
- <0.004% @8Ω 5W
- THD @20-10kHz (20kBW)
- <0.007% @4Ω 5W
- <0.006% @8Ω 5W
- SNR: 112dB
- DNR: 112dB
- Frequency response: 20Hz-40kHz (±0.1dB)
- Output level
- 46Vpp@4Ω
- 48Vpp@8Ω
- Noise (A-wt): <70uVrms
- Channel crosstalk @1kHz: -100dB
- Input sensitivity: 1.75Vrms
- Gain: 19.5dB
- Channel balance: 0.5dB
- Output power
- 80W x2 @4Ω THD+N <10%
- 45W x2 @8Ω THD+N <10%
- 65W x2 @4Ω THD+N <1%
- 37W x2 @8Ω THD+N <1%
- Adapter impedance: 4-8Ω
- Dimensions: 6.6” x 4.7” x 1.5” (16.8 x 12 x 4 cm)
What’s included
- PA3s
- AC to DC power adapter
- AC cable
- User manual
- Warranty card
