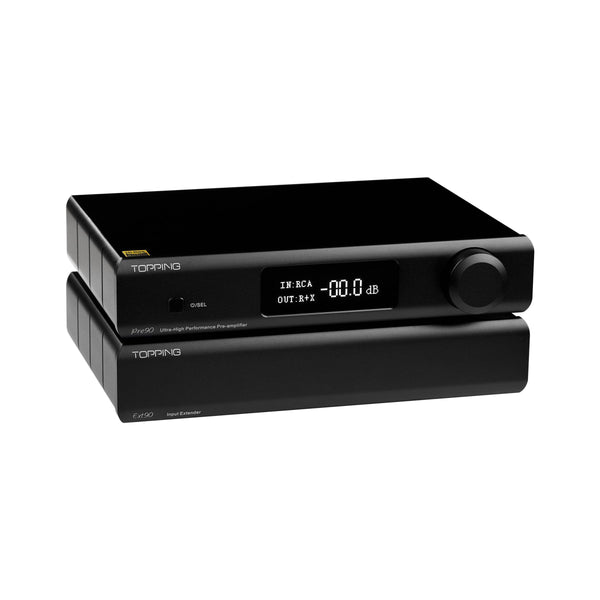

A preamp and input extender for the TOPPING 90 stack
The Pre90 and Ext90 are a preamplifier and input extender that take the D90/SE stack to a whole new level. Together, they allow you to connect up to six additional sources, output to additional amps (such as a tube amp), and more--essentially transforming the 90 stack into the Grand Central Station of audiophile setups.
Fully balanced preamp with +16dB gain
The Pre90 is a fully-balanced amplifier that uses the same NFCA (nested feedback composite amplifier) scheme as the A90, delivering a dynamic range of 145dB and no audible noise. With +16dB of maximum gain, it can amplify the weakest of signals into the receiving amplifier.
Run two amps from the Pre90
The Pre90 can be configured to run to XLR only, RCA only, or XLR+RCA. This final option allows you to run the Pre90 to two different amps, such as an A90 and a DarkVoice 336SE, without having to plug and unplug cables every time you want to jump from one amp to the other.
Volume safeguards protect equipment and hearing
The Pre90 features a volume safeguard designed to protect your equipment and ears. If you end a listening session with the volume set high, the Pre90 will automatically reduce the volume to a safe level the next time you listen, thus preventing your speakers (and ears) from blowing out.
Fully-functional remote
The Pre90 comes with a fully-functional remote that allows you to control every aspect of the Pre90 from volume to gain to user settings. You can even use it to save the current program, locking in the volume for a specific input/output configuration. This is useful if you’re running multiple sources and amplifiers--which each need their own volume setting--to and from the Pre90.
Ext90 extender adds 6 input ports
The Ext90 adds six input ports to the TOPPING 90 stack: 2 RCA and 4 XLR. This significantly expands the input options of the stack, essentially allowing you to plug in every source you have. For audiophiles looking for an all-in-one solution, this is it.
Product highlights
- Fully balanced pre-amp with +16 maximum gain
- Run two amps from the pre-amp
- Safe volume function protect equipment and hearing
- Fully functional remote control
- Add up to 6 input ports to your 90 stack
- THD+N: <0.00007% @1kHz A-wt
- THD: <0.0003%@20-20kHz 90kBW
- SINAD: 124dB @1Khz A-wt
- SNR
- SE IN/SE OUT: 141dB @1kHz A-wt
- BAL IN/SE OUT: 137dB @1kHz A-wt
- SE IN/BAL OUT: 145dB @1kHz A-wt
- BAL IN/BAL OUT: 138dB @1kHz A-wt
- Dynamic range
- SE IN/SE OUT: 141dB @1kHz A-wt
- BAL IN/SE OUT: 137dB @1kHz A-wt
- SE IN/BAL OUT: 145dB @1kHz A-wt
- BAL IN/BAL OUT: 138dB @1kHz A-wt
- Frequency response: 20 - 100,000Hz (+/-0.1dB)
- Output level
- SE IN/SE OUT: 25Vpp
- BAL IN/SE OUT: 25Vpp
- SE IN/BAL OUT: 50Vpp
- BAL IN/BAL OUT: 50Vpp
- AP measured noise level @A-wt
- SE IN/SE OUT: <0.7uVrms
- BAL IN/SE OUT: <0.7uVrms
- SE IN/BAL OUT: <0.9uVrms
- BAL IN/BAL OUT: <0.9uVrms
- Actual noise level @A-wt
- SE IN/SE OUT: <0.3uVrms
- BAL IN/SE OUT: <0.3uVrms
- SE IN/BAL OUT: <0.6uVrms
- BAL IN/BAL OUT: <0.6uVrms
- Channel crosstalk @1kHz
- SE IN/SE OUT: -130dB
- BAL IN/SE OUT: -137dB
- SE IN/BAL OUT: -140dB
- BAL IN/BAL OUT: -140dB
- Channel balance
- SE IN/SE OUT: +10db - -60dB +/-0.5dB
- BAL IN/SE OUT: +10db - -60dB +/-0.5dB
- SE IN/BAL OUT: +16db - -60dB +/-0.5dB
- BAL IN/BAL OUT: +16db - -60dB +/-0.5dB
- IMD CCIF @(18kHz+19kHz): -115dB
- IMD SMPTE @(60Hz+7kHz): -115dB@SMPTE4: 1
- Input sensitivity
- SE IN/SE OUT: 9.2Vrms@0dB
- BAL IN/SE OUT: 9.3Vrms@0dB
- SE IN/BAL OUT: 9.2Vrms @0dB
- BAL IN/BAL OUT: 9.3Vrms@0dB
- Volume range
- SE IN/SE OUT: +10db - -99dB
- BAL IN/SE OUT: +10db - -99dB
- SE IN/BAL OUT: +16db - -99dB
- BAL IN/BAL OUT: +16db - -99dB
- Output impedance
- SE IN/SE OUT: 20Ω
- BAL IN/SE OUT: 20Ω
- SE IN/BAL OUT: 40Ω
- BAL IN/BAL OUT: 40Ω
- Output DC Configuration: <1mVrms
What’s included
- Pre90 contents list
- 1x Pre90 Preamplifier
- 1x remote
- 1x AC cable
- 1x user manual
- 1x warranty card
- Ext90 Contents list
- 1x Ext90 input extender
- 1x aviation connector cable
- 1x user manual
- 1x warranty card
